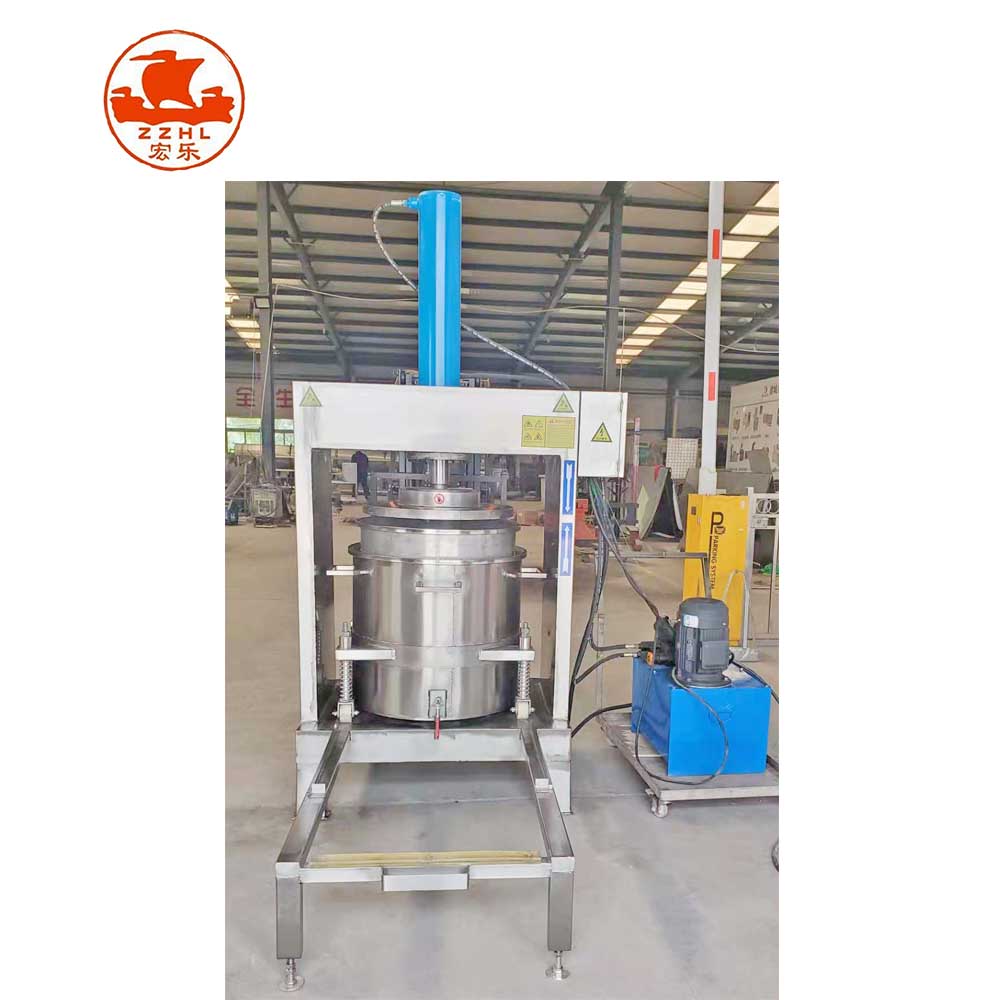

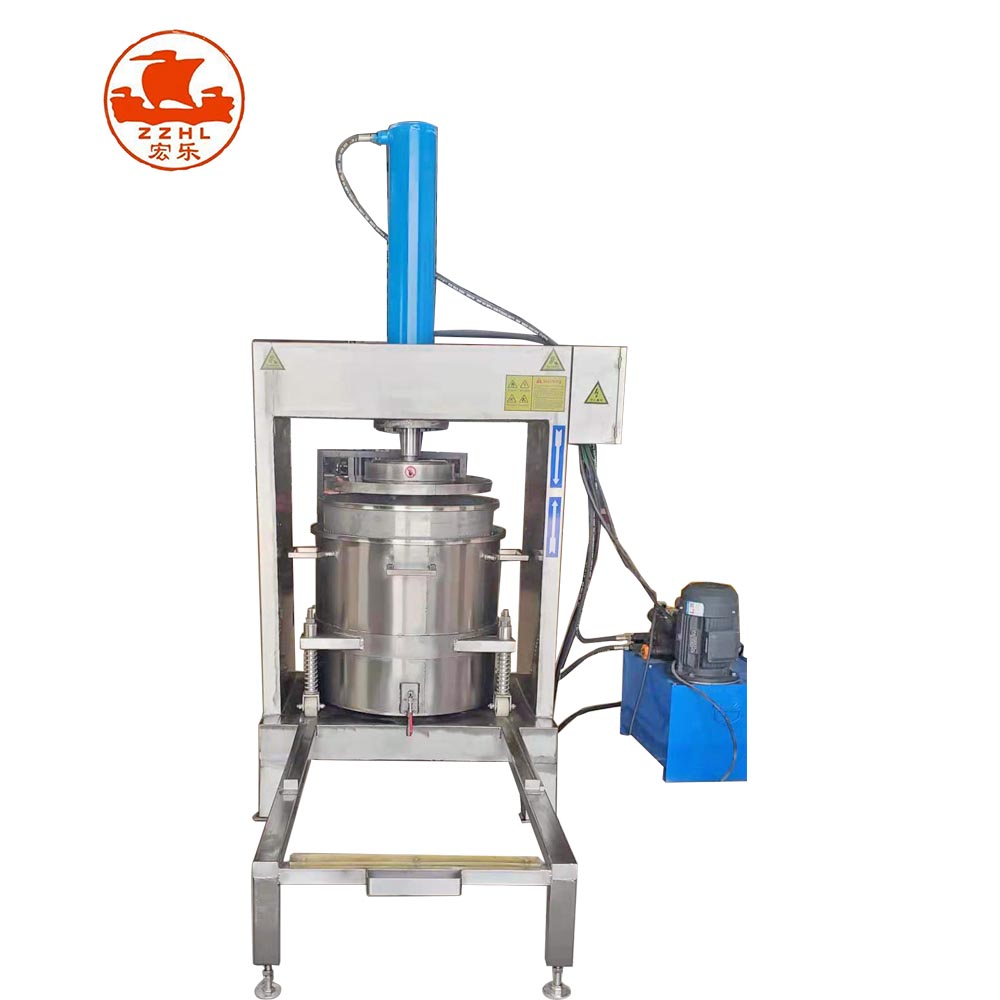

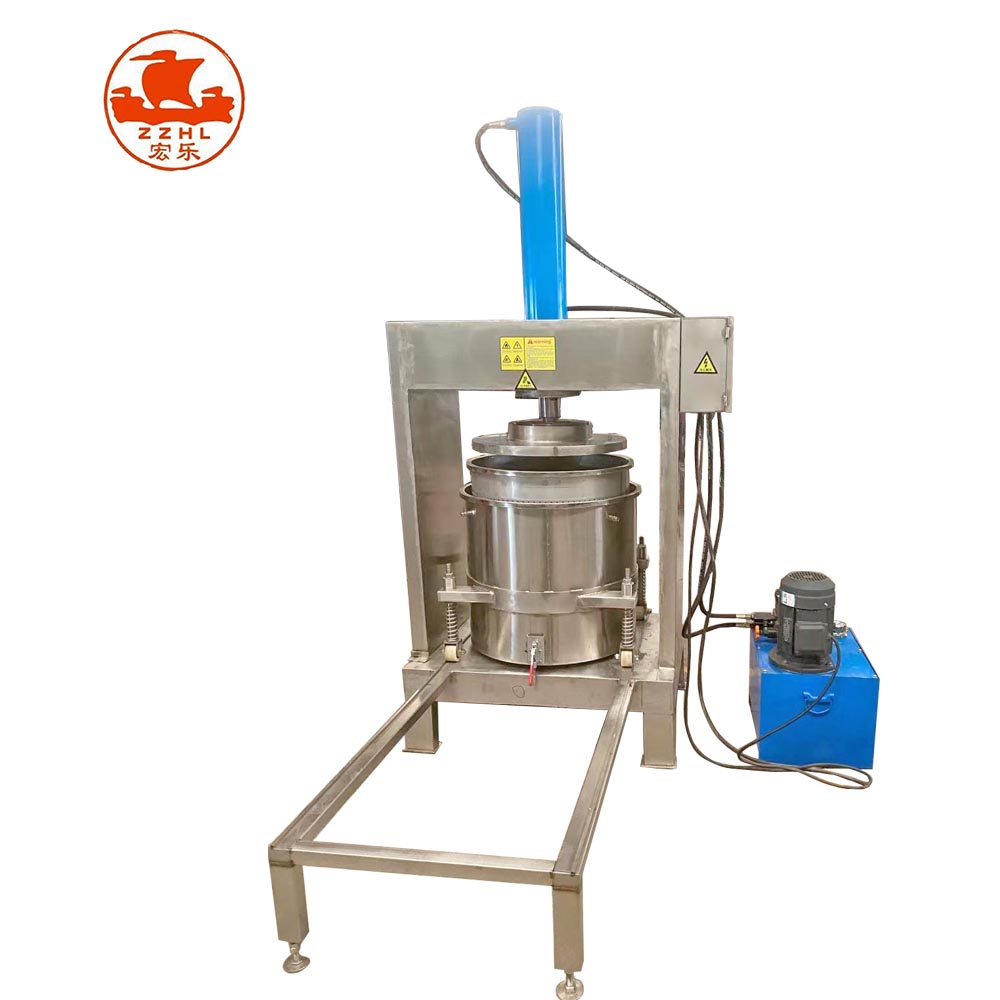

Fruit Juice Press Machine Hydraulic Vegetable Juicer Machine Juice Extractor Machine
According to customer demand, the pressure customized 30 tons-500 tons, to meet a variety of materials juicing/dehydration requirements.
1. All sus304 stainless steel body, easy to clean, not easy to corrode.
2. Small size, high efficiency.
3. Can Be used under the way of discharge, a large number of savings in labor costs.
4. The press dehydrating/juicing machine is mainly composed of frame, body, pressing plate, basket, hydraulic system, pump station system and electric control part.
The types of squeezing dewatering/juicing machines include single-bucket squeezing dewatering/juicing machine, double-bucket rotating squeezing dewatering/juicing machine, automatic squeezing dewatering/juicing machine, users can choose different equipment according to different process requirements.
|
Model |
Capacity |
Inner cylinder size |
pressure |
Power |
Inclined discharging dimensions |
automatic discharging dimensions |
Squeeze time |
|
HL-50L |
90kg/h |
400-500 |
30T |
2.2kw |
1.2*0.642*1.76m |
1.35*0.86*1.87m |
15min |
|
HL-100L |
240kg/h |
500 |
30T |
2.2kw |
1.3*0.74*1.76m |
1.45*0.86*1.87m |
15min |
|
HL-150L |
400kg/h |
550-600 |
30T |
3kw |
1.85*0.79*2.01m |
1.6*0.88*2.08m |
15min |
|
HL-200L |
540kg/h |
600-700 |
50T |
4kw |
1.85*0.89*2.21m |
1.73*0.94*2.21m |
15min |
|
HL-300L |
780kg/h |
700-750 |
50T |
4kw |
1.9*0.95*2.31m |
1.8*1.04*2.31m |
18min |
|
HL-400L |
900kg/h |
800 |
50-500T |
4-22kw |
2*1*2.41mm |
2*1.14*2.5m |
20min |
|
HL-500L |
1300kg/h |
850-900 |
50-500T |
4-22kw |
2.2*1.5*2.62m |
2.2*1.2*2.52m |
20min |
-
According to the characteristics of pomegranate hierarchical structure (skin-diaphragm-fruit grains), a profiling peeling and separating machine and a pomegranate seed meat separating machine are developed, which can replace the squeezer to separate the skin, film and grains without damage.
Pomegranate Seed Separation And Purification Production Line
-
The machine is equipped with brusher roller, which can wash and peel fruit and vegetables very clean. The machine is suitable for washing and peeling potato, sweet potato, taro, carrot, pumpkin etc.
Brush Washing Machine
-
Industrial Apple Peeler Corer Slicer Apple Peeling Machine Electric
-
The automatic puffing production line for fruit and vegetable chips is independently developed, with independent intellectual property rights and international leading technology processing equipment.
Automatic Fruit and Vegetable Crisp Chips Puffing Production Line
