Equipment Description

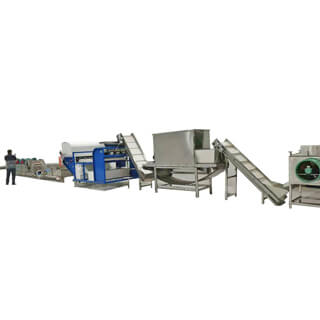

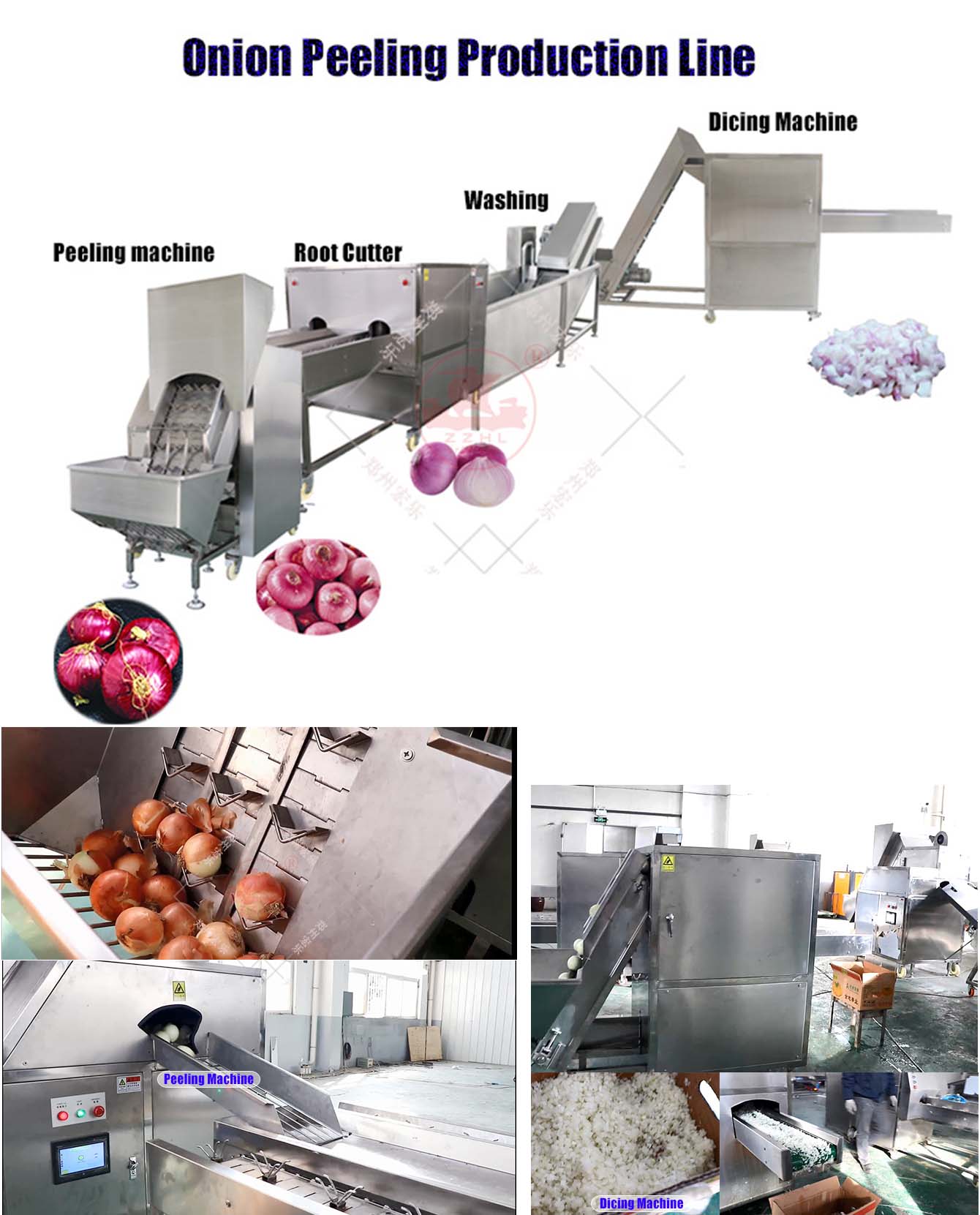

The Onion Processing line includes the Onion peeling machine, onion root cutting machine, grading machine, washing machine and onion slicing machine.
The commercial onion peeling machine can process 1500-2000kg onions per hour. it is a big capacity for onion processing industrial.
This type onion peeling machine Feeding way is with Double feeding Conveyor.and the machine peeling onion skin with High Press Gas Peeling Method.this way is no damage to onion. it is better for onion deep onion processes.
PARAMETER
| name | Quantity | picture | Details |

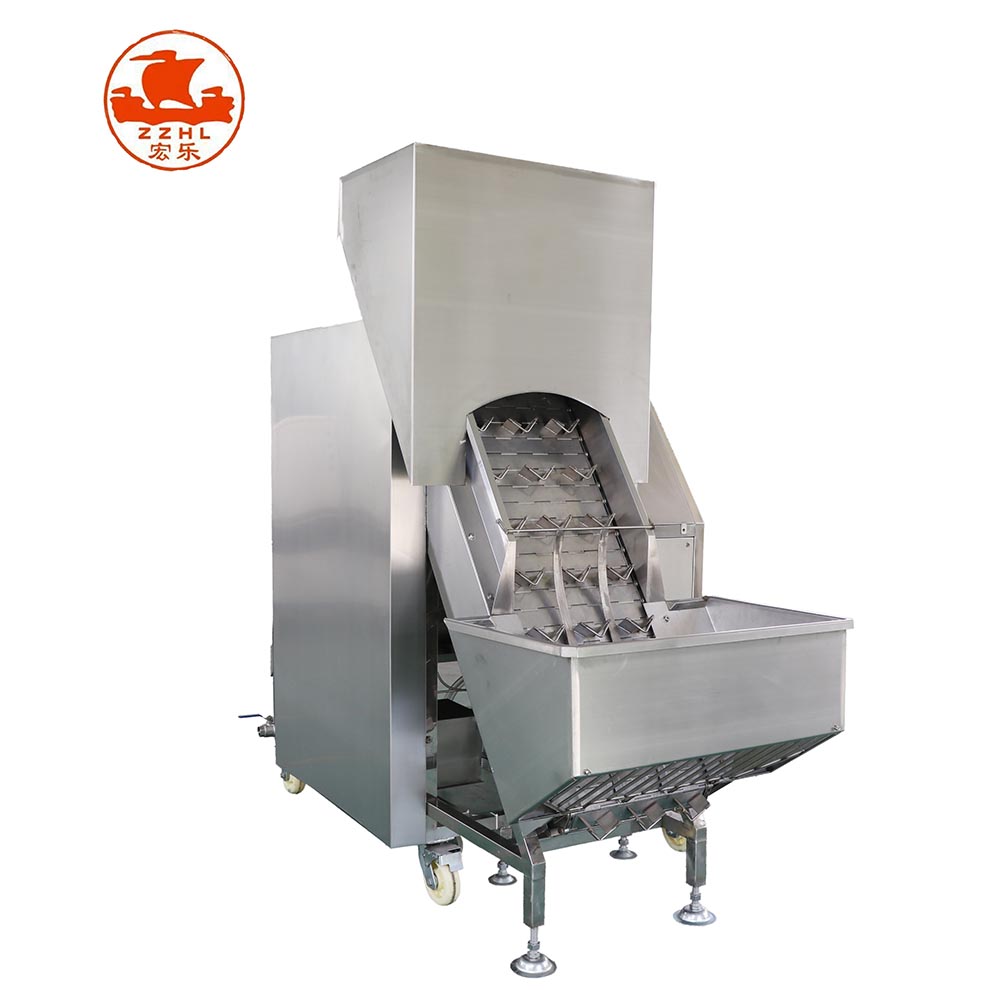

| onion peeling machine | 1set | size: 2150*1150*2000mm Power supply: 220V/60HZ Air source: ≥1.0MPa Power: 1.52Kw Output: 2t/h (onion diameter 60-100mm) Weight: 440kg Put the onion into the elevator and it will enter the peeling machine automatically. Use high-pressure air nozzles for skin blowing. | |

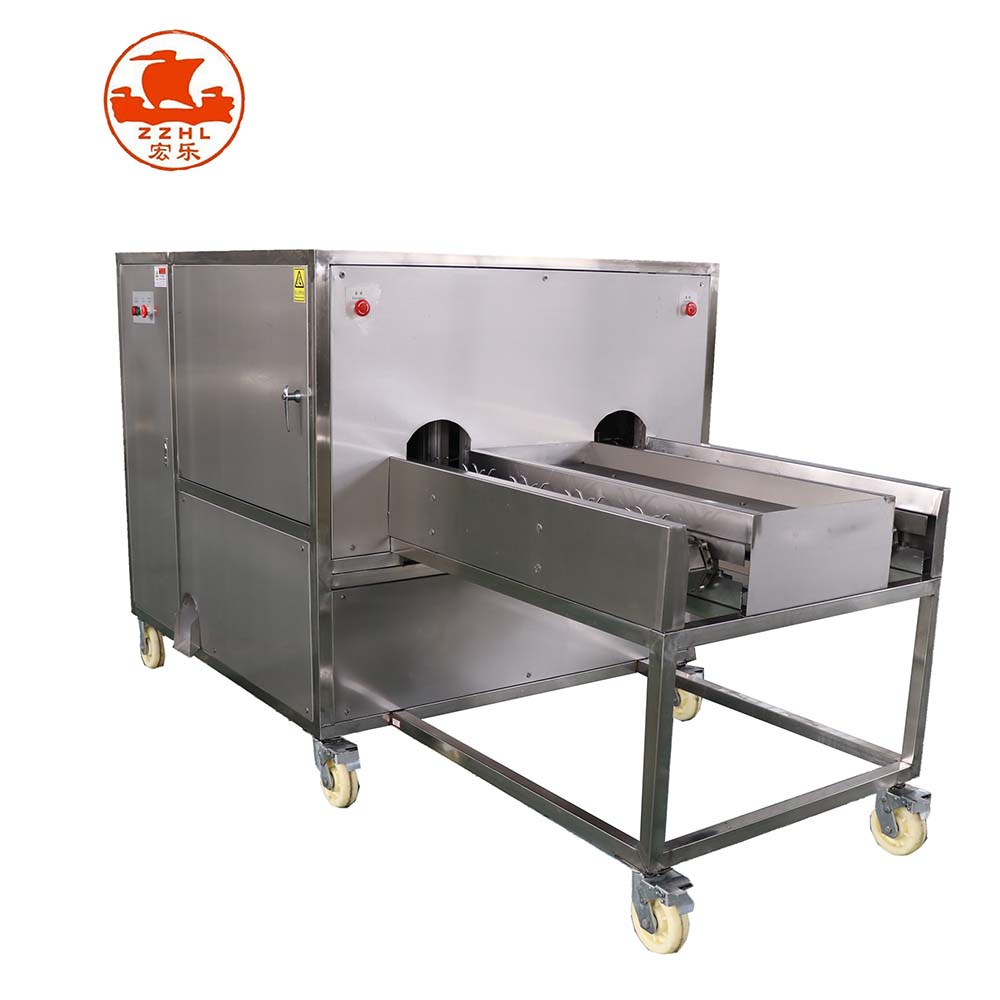

| Onion root cutter | 1set | size: 2650*1400*1400mm Voltage: 220V/60HZ Motor power: 2.22KW capability: 2t/h Weight: 380kg Place the onions manually on a specific conveyor,step by step to cut the tail, dig the stem and peel the left and right sides. | |

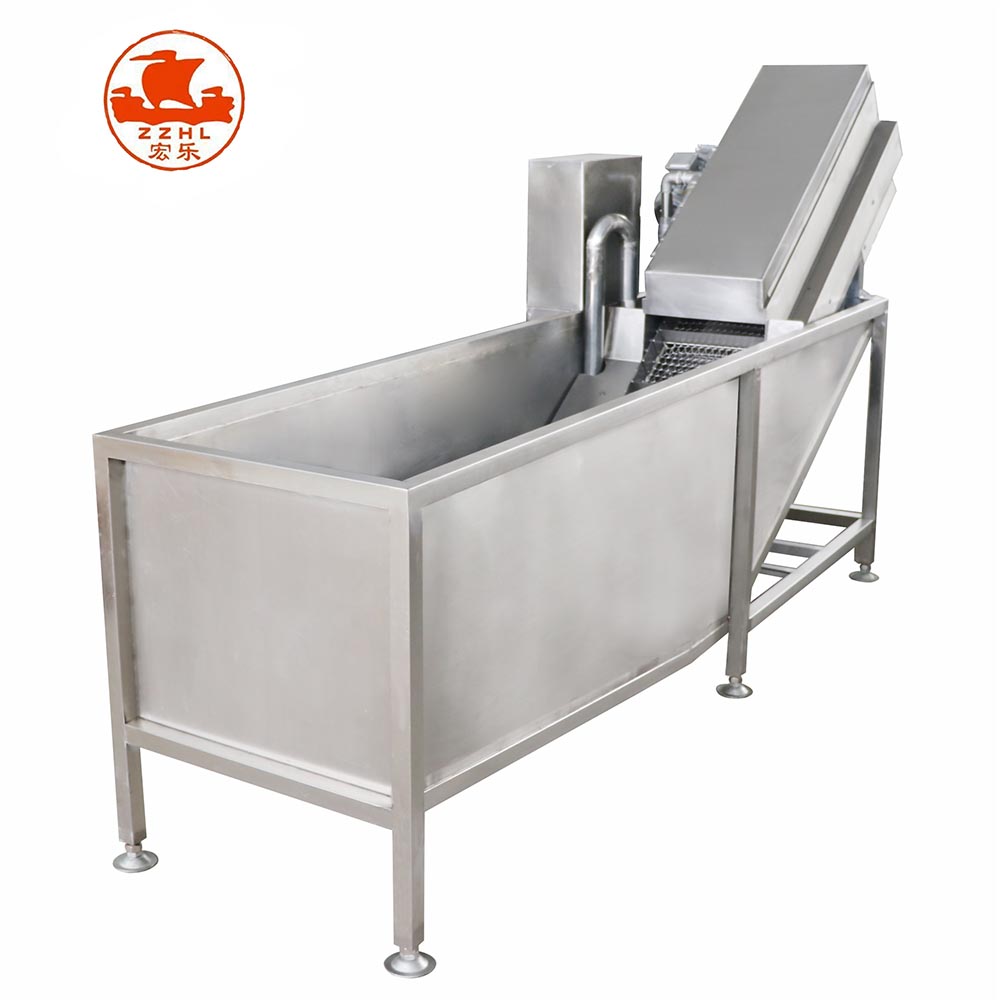

| Air Bubble Washing Machine | 1set | Model:HL6000 Size :2800*1200*1600mm Weight (KG):203 Power /voltage:2.1KW/220V/60HZ | |

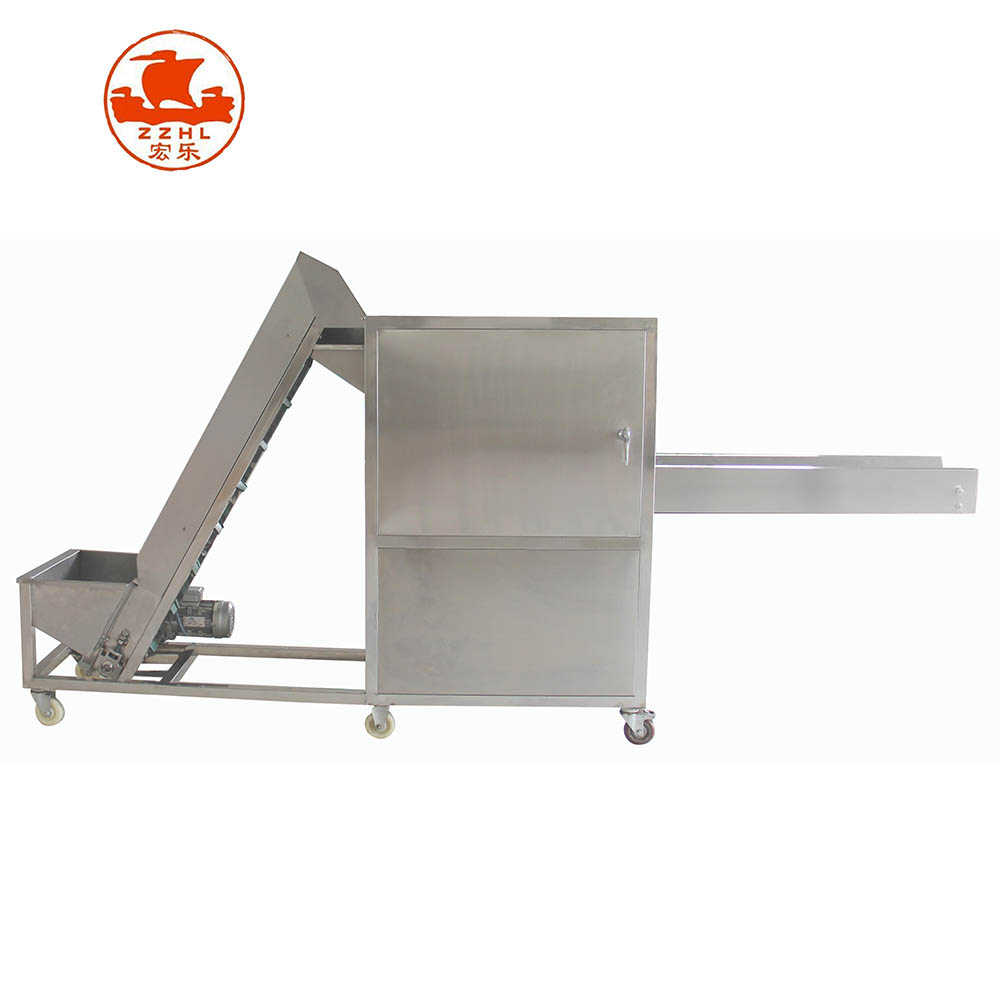

| Dicing machine | 2set | Material:Food grade SUS304 stainless steel Power:1.52kw Size:2400*1000*1340mm Cutting size:5-10mm Cutting size:2-3mm (customizable) The wheels can move. | |
| Air dryer machine | 1set | Power：0.75kw Voltage：220V/60HZ Size：6000*1100*1200mm Weight：200kg | |
| Full Automatic Packing Machine | 1set | 1:Machine material:SUS304 2:10 head combination SUS304 3:Z type product conveyor Carbon steel 4:Working platform Carbon steel 5:Finished product conveyor Carbon steel 6:Printer 7:Eye mark 8.Length and width :3300*2000mm |
