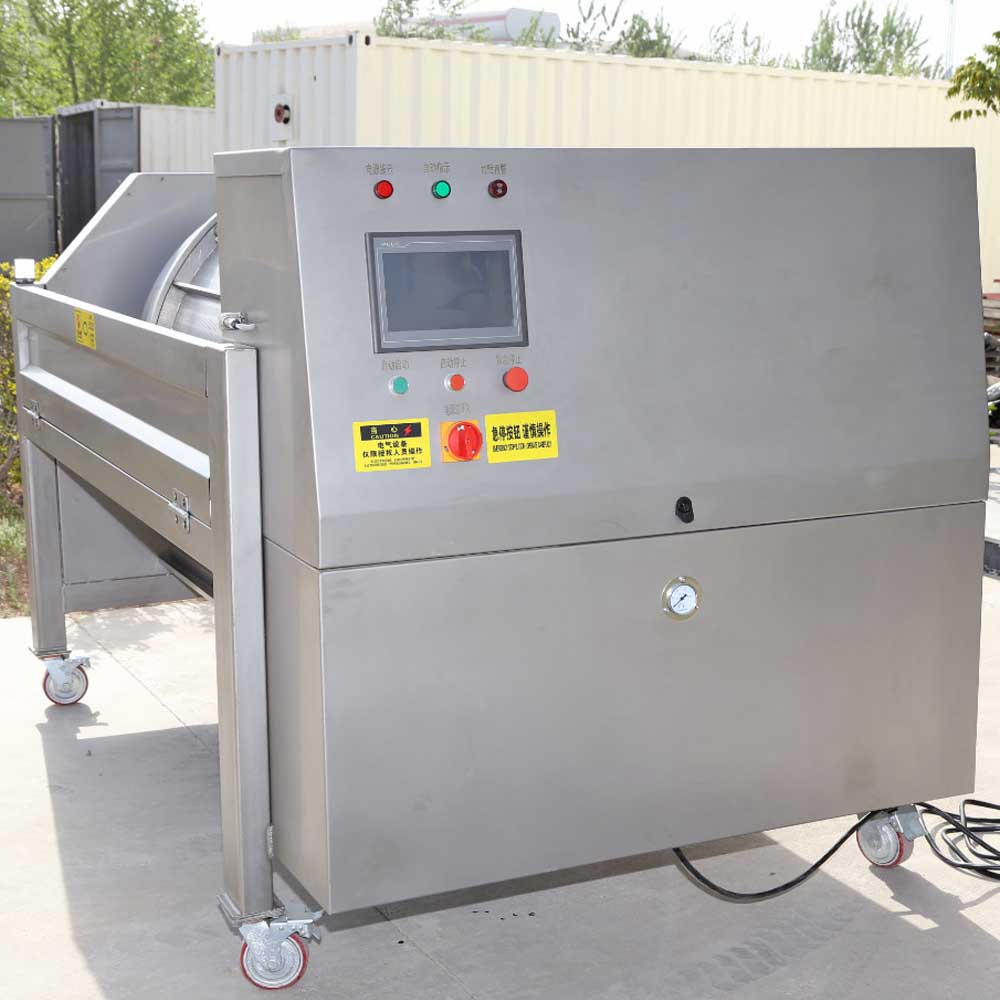

Grape Straw Berry Pneumatic Wine Press Machine

2m³ airbag press configuration

1. Party B's product design bilingual operation mode (Chinese, English)

2. A waterproof cover is added to the operation panel, suitable for outdoor use

3. Voltage: three-phase 240v; (can be customized)

4. Axial feed DN100; (optional)

5. PLC control, preset 2 standard programs, touch screen can realize the setting of any pressing cycle program;(Multiple standard programs can be customized)

6. The main body and pipes of the equipment are all made of SUS304 stainless steel;

7. Equipped with casters, flexible movement, the length of the power cord is 20 meters;

8. The inside of the pressing chamber is equipped with three juice separation screen grooves, which communicate with the external juice collection port;

9. The juice collection port is equipped with a threaded connection plug, which can be easily connected to the pipeline, effectively increasing the pressing separation area and improving the separation effect;

10. The collection tank is 300L, and the DN50 interface is installed; (can be customized)

11. Infrared induction safety protection.

12. The area of the juice outlet hole of the pressing chamber can be customized, and the size of the feeding door can be customized.

PARAMETER
Model Tank volume (L) Whole grapes Crushed grapes Fermented skin residue  Voltage Maximum pressure MPA MACHINE SIZE
HLQNYZ-20 20 10kg 20kg 20kg 220v 1.1kw 0.3 1*0.55*0.9m
HLQNYZ-50 50 30kg 50kg 50kg 380v 2kw 0.3 1.15*0.7*0.9m
HLQNYZ-100 100 60kg 100kg 100kg 380v 2kw 0.3 1.3*0.8*1m
HLQNYZ-300 300 200kg 300kg 300kg 380v 2kw 0.3 1.4*1.25*1.3m
HLQNYZ-500 500 300kg 500kg 500kg 380v 3.5kw 0.3 1.89*1.1*1.21m
HLQNYZ-1000 1000 700kg 1000kg 1000kg 380v 4.6kw 0.3 2.6*1.65*1.5m
HLQNYZ-1500 1500 1000kg 1500kg 1500kg 380v 5.5kw 0.3 2.89*1.65*1.8m
HLQNYZ-2000 2000 1400kg 2000kg 2000kg 380v 5.5kw 0.3 3.2*1.8*2.15m
HLQNYZ-3000 3000 2000kg 3000kg 3000kg 380v 5.5kw 0.3 3.55*1.98*1.8m
HLQNYZ-5000 5000 3000kg 5000kg 5000kg 380v 7kw 0.3 4*2.1*2.1m
