Equipment Description

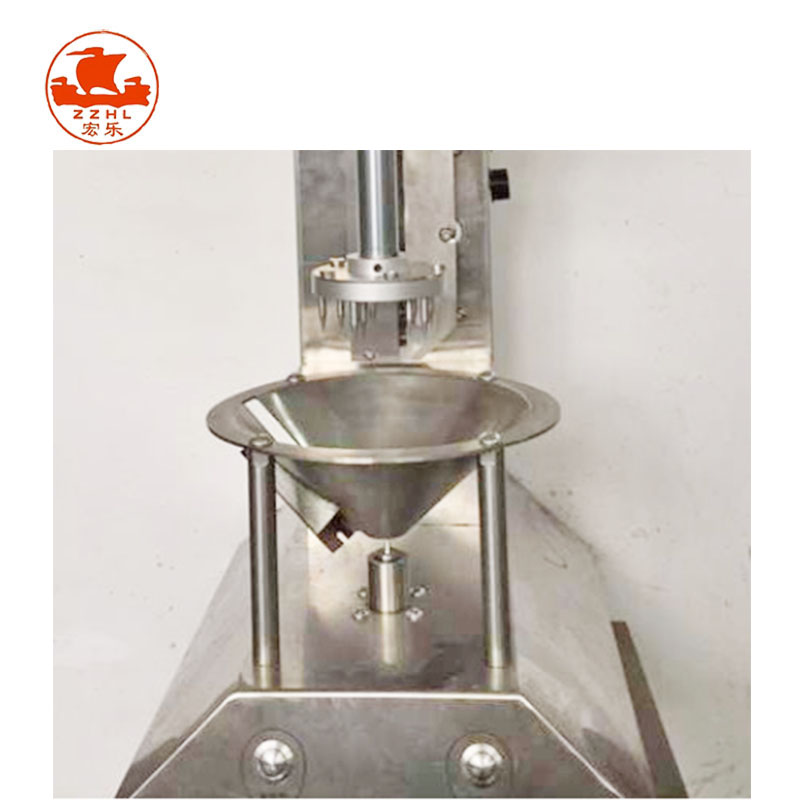

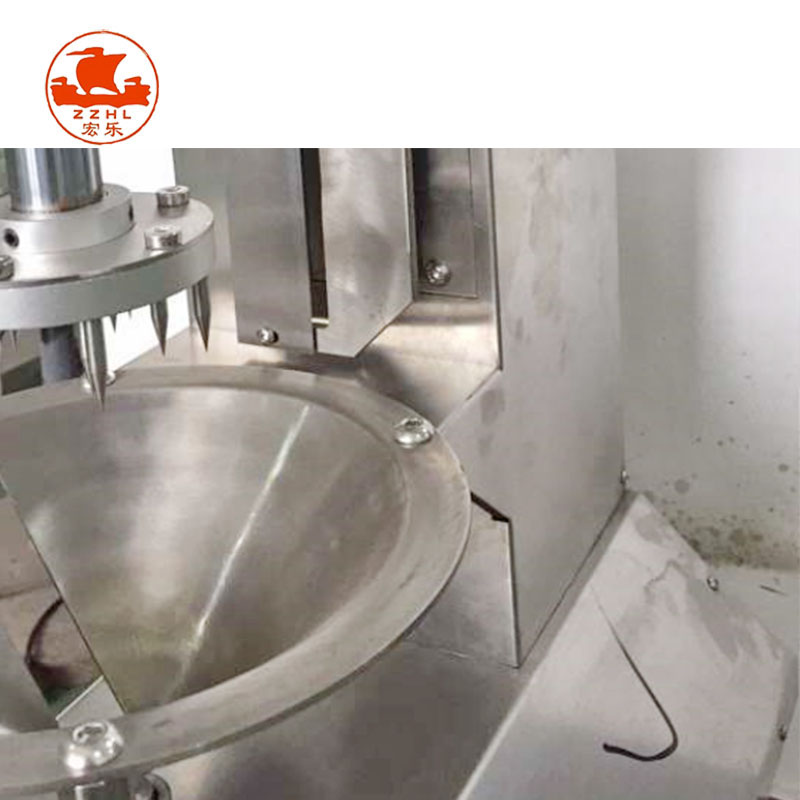

coconut peel, get on top of the cone shape coconut; Structure characteristics and working principle: this machine frame, main axis, control system, transmission, cylinder, paring knife, etc. Work, the coconut as to the axis of rotation, press the start button, side cutting knife and taper knife work, to the side of the coconut peel and top peel into a cone, the motor stop running automatically, and then artificial remove coconut, then use knife cut at the bottom of the flat; The equipment outside the parer high speed steel, durable.
PARAMETER
| Scope of application | ø100～240mm |
| Product size | ø100～160mm |
| Peeling speed | 6～10 seconds/one |
| Working medium | Compressed air filtered through 40 m |
| Gas consumption | ~50L/min |
| Working pressure | 0.4-0.7Mpa |
| control mode | Automatic program control |
| Power | 0.8kW |
| Motor power | 0.75kw |
| Rated speed | 181±10rpm |
| Rated torque | 181±10rpm |
| Use environment | 5-40℃，RH≤85% |
| Use DB | ≤50dB(A) |
| Voltage | 110V/220V |
| Overall size | 300×410×880mm |
| Weight | 50kg |
