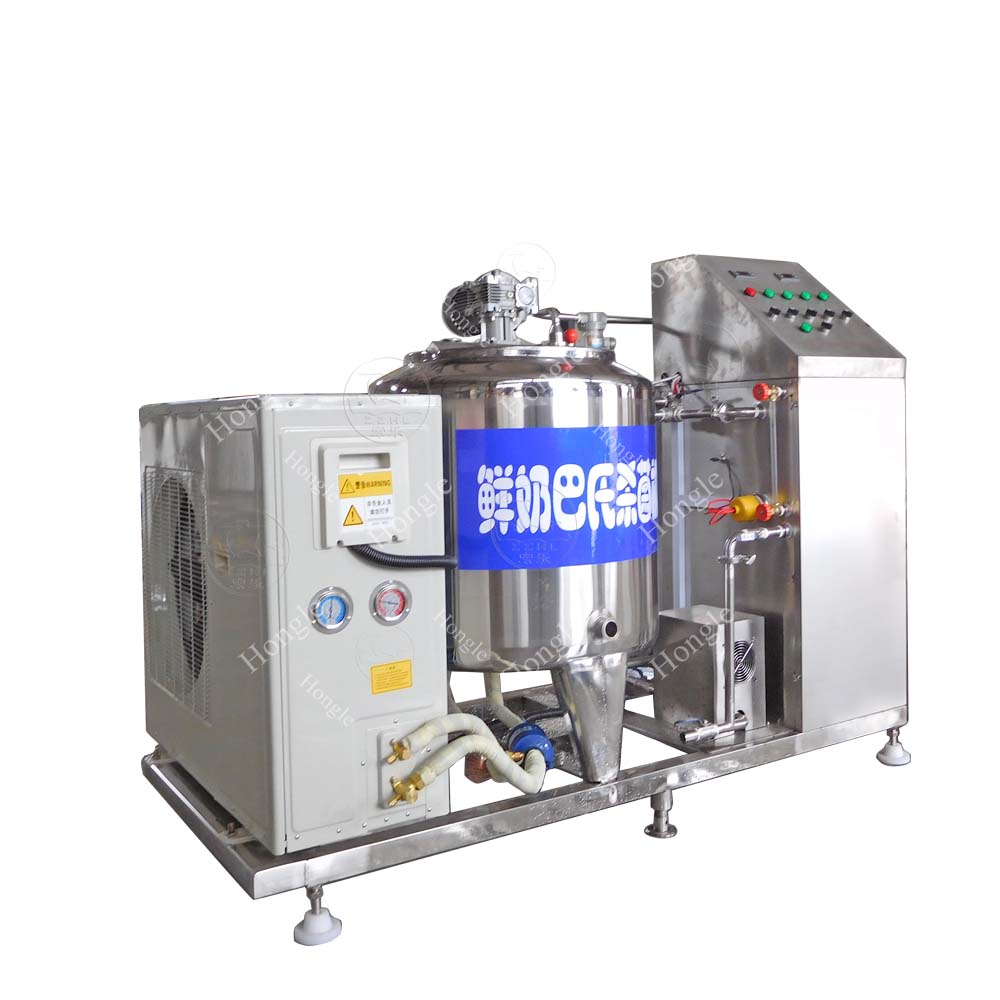

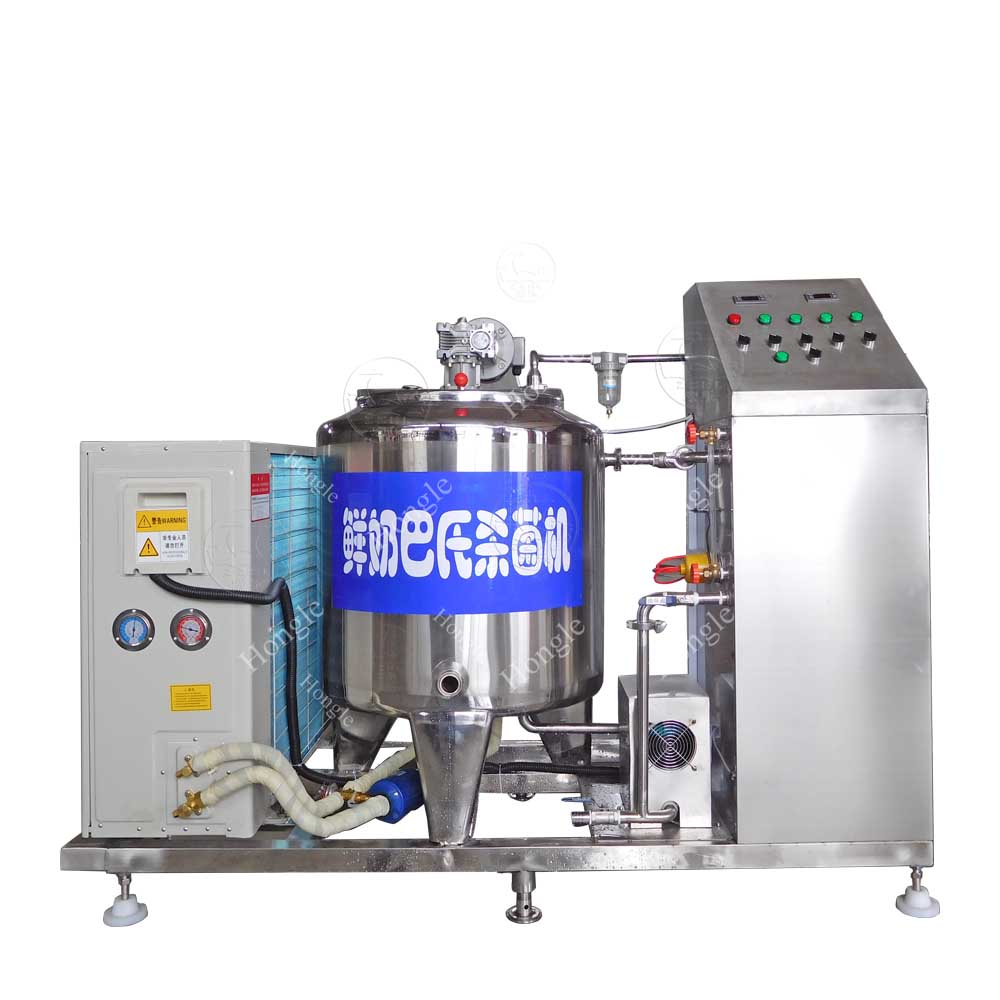

Refrigerated Fresh Milk Pasteurizer Machine

Equipment Description

Fresh milk pasteurizer machine has two heating forms: steam heating and electric heating.

Fresh milk pasteurization is low-temperature sterilization, which refers to a sterilization method below 100 degrees Celsius.

The whole machine is made of stainless steel, and the sterilization temperature and speed can be set according to the process requirements.

Fresh milk pasteurization machine equipment The machine runs smoothly with low noise, and the sterilization temperature of the pasteurization machine can be set freely. Within the adjustable range, the time is adjustable. It will not cause color change, taste damage and other problems. The sterilizing temperature is set at a better time and milk temperature to better achieve the sterilizing effect and to make healthy, delicious and safe fresh milk that is conducive to human health and absorption.

model HL-R-100L HL-R-200L HL-R-500L
equipment structure 2P compressor+100L pasteurizer+hot water tank 3P compressor+200L pasteurizer+hot water tank 3P compressor+500L pasteurizer+hot water tank
material SUS304 SUS304 SUS304
Crew name American Copeland American Copeland American Copeland
Unit power 2P 3P 3P
Barrel inner diameter 625mm 630mm 1000mm
The height of the milk bucket plus legs 1140mm 1530mm 1800mm
Inner Height of Milk Tank 605mm 670mm 850mm
Yield 50-100kg/batch 100-200kg/batch 100-500kg/batch
Overall height 1980mm 1530mm 1800mm
power supply 380V/13kw 380v  13kw 380V/27kw
Dimensions 1900*800*1980mm 2500*1100*1500mm 2800*1100*1800mm
 weight 300kg about 350kg about 600kg
