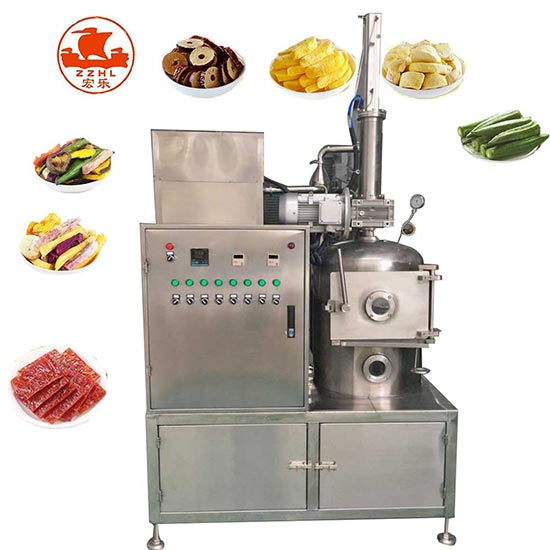

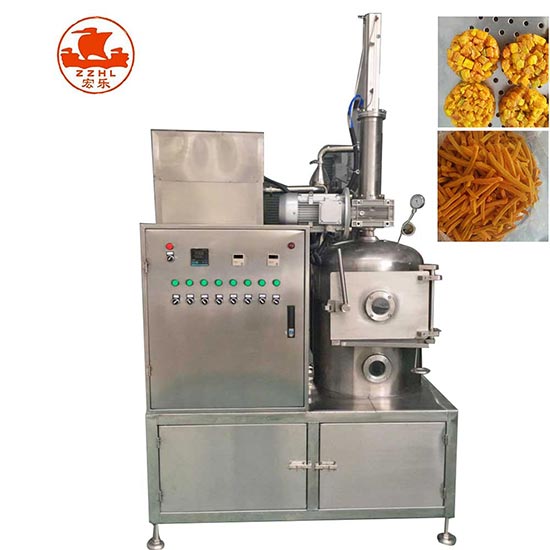

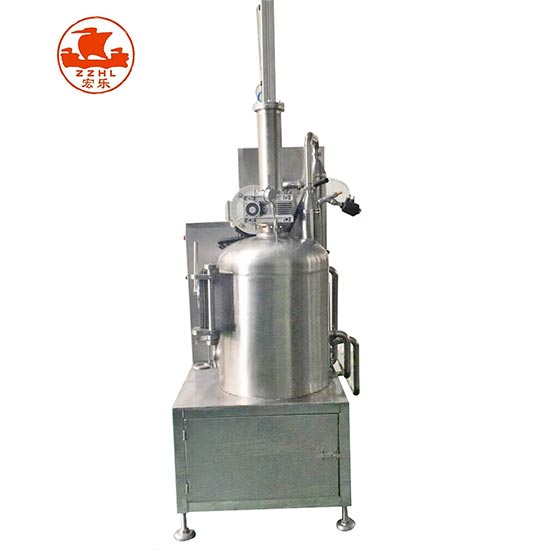

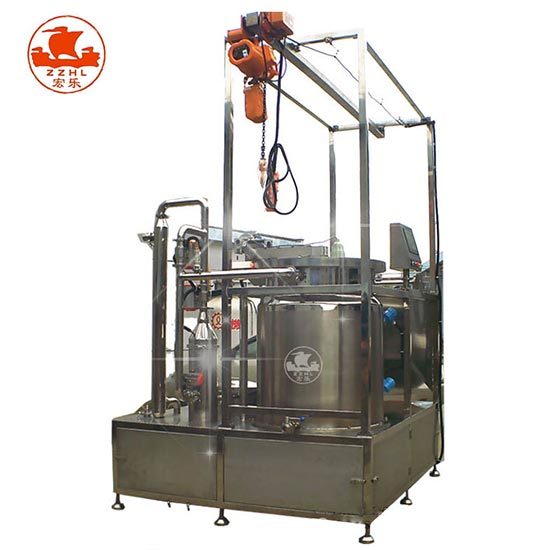

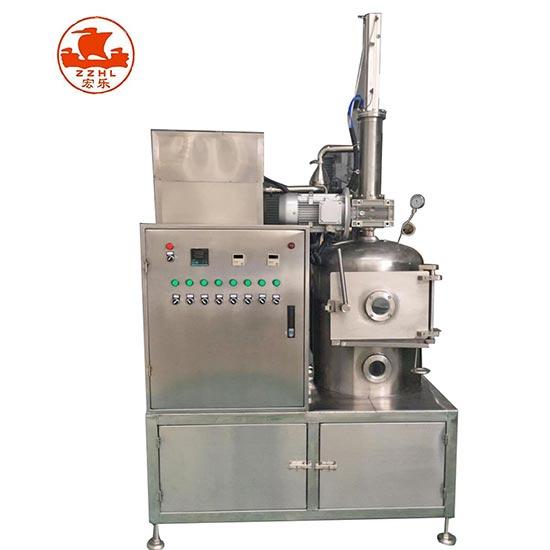

Vacuum Fryer Machine


Operating Principle :

Fruit and vegetable crisps are made from fresh fruits and vegetables, using edible vegetable oil as heat medium and adopting advanced technologies such as low temperature vacuum frying (VF) , which can be quickly dehydrated and dried in a very short time, to obtain fruits and vegetables with low water content, low oil content, crisp but not greasy, preserving the original shape, color, aroma and taste of fruits and vegetables, and rich in vitamins, minerals, fiber and other nutrients, with low sugar, low salt, low fat, low heat and other characteristics.

Applicable Food Scope :

1.Fruit Category: such as apple, banana, Kiwi, pineapple, winter jujube, strawberry, jackfruit and so on.
2.VEGETABLES: carrots, turnips, sweet potatoes, squash, garlic, onions, mushrooms, winter melon, Okra, etc.
3. Meat: such as beef, fish, shrimp, octopus and so on.

Process Flow :

Raw material → screening → cleaning → slicing → deasphalting → vacuum impregnation → quick freezing → vacuum frying → vacuum deoiling → flavoring → product packaging → storage

Composition of vacuum low temperature frying equipment :

Vacuum frying kettle, oil heating system, vacuum system, water vapor capture system, hydraulic system, pneumatic system, automatic deoiling system, electrical control system.

Model/Parameter QS-300 QS-100 QS-50
Capacity (raw material Kg/batch) 300 100 50
Capacity (Kg/time) 100-200(Take the sweet potato for example) 30-50(Take the sweet potato for example) 30-70(Take the sweet potato for example)
Time (min/time) 40-60 25-80
Ultimate vacuum(Mpa) - 0.092~-0.096 - 0.092~-0.096 - 0.092~-0.096
Oil Temperature(℃) 80~100 80~100 80~100
Heating source Heating source Steam heating Steam heating Steam heating
Steam consumption(Kg/h) 250 100
Vapor pressure(Mpa) 0.4~0.8 0.4~0.8
Main heating mode Coil heating Coil heating Coil heating or steam
Compressed air(Mpa) 0.5~0.8 0.5~0.8 0.5~0.8
Deoiling revolution  n/min 100~750 100~750 100~750
Cooling water capacity(T/h) 40 10 25
Power supply Electric System 380V/220V 380V/220V 380V/220V
